What Is A Pump Performance Chart

What Is A Pump Performance Chart

All pumps that move liquids have very different characteristics.  Some of these are designed so that the pump performs a particular job efficiently and others are from poor design.  A pond pump when compared next to a pressure pump would be an extreme example of pumps that are made for a purpose .  A pond pump may have less than 1 bar of pressure but will pump 25,000 litres of water per hour while the pressure pump will move 4500 litres at a 4 bar head.

 An example of poor design in a pressure  pump.  One model with an 800 watt electric motor will pump 3000 litres per hour at a 3.5 bar head while another  will have a smaller size electric motor and pump 4500 litres per hour at 4.5 bar head.

From this information we can see that it is very important to understand what a pressure pump can deliver rather than its horse power or motor wattage.

Pump Performance Chart

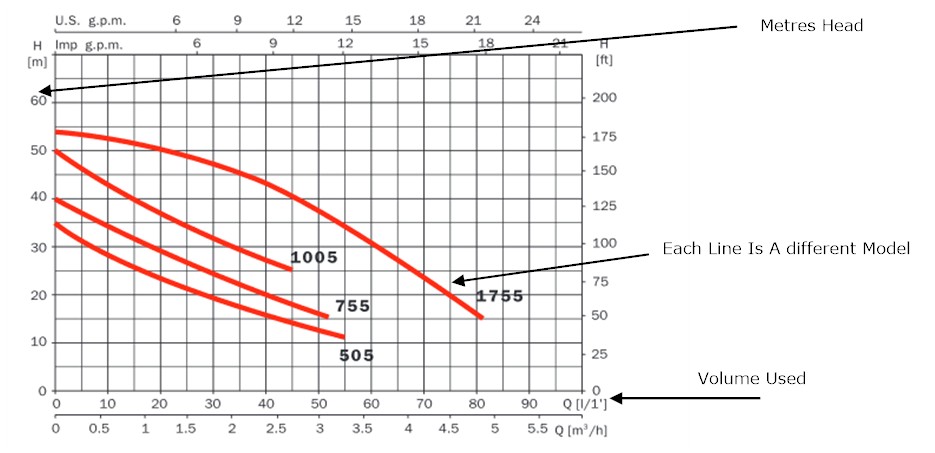

Example of a pump performance chart

This simple pump performance chart tells us all we need to know about this particular type of pump.

  • The red lines on the graph are different models of the same pump.  The smallest in the range is the 505 and the largest is the 1755.
  • The horizontal line at the bottom shows the amount of liquid passing through the pump or in the case of irrigation the amount of water that we are using.
  • The vertical axis shows the metres head.  What does this mean?  If you had a tube 10 metres tall full of water then the pressure at the bottom of the tube would be just over 1 bar.  We will assume that 10 metres head is equal to 1 bar it is in actual fact a little more than 1 bar.

How to use a pump performance chart

In the example below we will assume that we are using

  • The 505 pump
  • We are using pop up sprinklers that are using 500 litres per hour
  • We will ignore any pressure loss that will occur due to pipe friction, bends etc

If I turn the 505 pump on and no sprinklers are running we will have a  35 metre head ( 3.5 bar)  and zero flow.

I now turn on 1 sprinkler.  My flow is 500 litres per hour or 500 divided by 60 minutes = 8.33 litres per minute. Put your finger on the left corner of the horizontal line.  Move your finger right until you reach .5  Now move your finger straight up until it touches the red 505 models line and then read the metres head pressure. You will see that it has now dropped to about 29 metres head or 2.9 bar

I now turn on 2 sprinklers and repeat the process above but this time I move my finger along the horizontal line to the number 1 or 1 cubic metre per hour which is the same as 1000 litres per hour ( 2 sprinklers 500 litres per hour each = 1000 litres).  I can now see that the pressure has dropped to between 23 and 24 metres head ( 2.3 and 2.4 Bar)

That is the basics. There are many other things that we would need to build in to the calculation like filters, valves, length of pipe so this should be taken as a guide
