PVC Tees Reducing

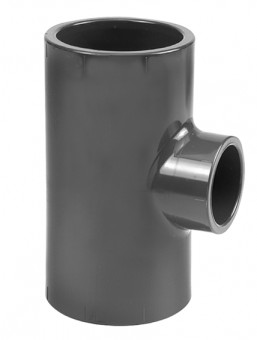

VDL PVC Reducing Tees

VDL branch reducing Tees are an ideal way to branch off from the main supply pipe

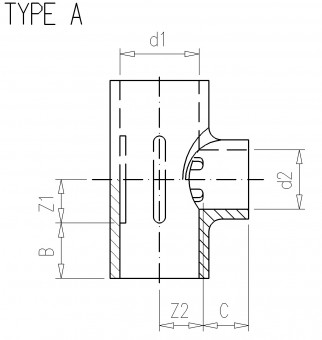

ART.code d1 d2 d3 Z1 Z2 Z3 B C D Type PN Verp

2.03.010 25 20   14 15.5   19 16   A 16 300

2.03.015 32 20   18 19   22 16   A 16 250
2.03.020 32 25   18 19   22 19   A 16 200

2.03.025 40 25   23 23   26 19   A 16 140
2.03.031 40 32   23 23   26 22   A 10 140

2.03.035 50 25   28 29.5   31 19   A 16 100
2.03.041 50 32   28 28.5   31 22   A 10 90

2.03.046 50 40   28 29   31 26   A 10 90
2.03.047 50 40 50 28 38 33 31 26 31 C 16 75


2.03.050 63 25   33.5 34   38 19   A 16 50
2.03.055 63 32   34.5 36   38 22   A 16 50
2.03.060 63 40   32.5 32.5   38 26   A 16 45
2.03.063 63 40 50 34.5 46.5 41 38 26 31 C 16 40
2.03.065 63 50   33.5 34   38 31   A 16 40
2.03.070 75 32   40 43   44 22   A 16 30
2.03.075 75 40   40 40.5   44 26   A 16 30
2.03.080 75 50   40 40.5   44 31   A 16 28
2.03.085 75 63   40 40.5   44 38   A 16 25
2.03.090 90 32   46 55   51 22   A 16 17

2.03.095 90 50   46 55   51 31   A 16 17

2.03.100 90 75   46 55   51 44   A 16 14
2.03.105 110 32   56 66.5   61 22   A 16 9

2.03.110 110 50   56 66.5   61 31   A 16 9

2.03.112 110 75   56 65   61 44   A 16 8
2.03.115 110 90   56 65   61 51   A 16 8



PVC-U

PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as:

  • Chemical installations
  • Portable water applications
  • Food and beverage industry
  • Sanitary and swimming pool technology
  • Irrigation


The main advantages of PVC-U are:

  • Excellent chemical resistance
  • Corrosion resistance
  • Easy installation
  • Durability
  • Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.


Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.


Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.


Dimensions and standards PVC-U

The fittings correspond to the following standards:

  • DIN 8063
  • ISO 727
  • KIWA nr. BRL-K 504



Model Image Item Name Price
C814725
Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On Wet R Dry UPVC Cement 250 grams 240 ml  Medium bodied, extremely fast setting, low VOC PVC cement for all classes and schedules with interference fit through 6″ (160 mm) diameter, Schedule 80 through 4″ (110 mm) diameter....
£25.07
details
 Sold Out
C803331
PVC Reducing Tee Branch Reduced 32x32x20

PVC Reducing Tee Branch Reduced 32x32x20

Reducing Tee Branch Reduced 32x32x20 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£1.64
Add:
C803332
PVC Reducing Tee Branch Reduced 32x32x25

PVC Reducing Tee Branch Reduced 32x32x25

Reducing Tee Branch Reduced 32x32x25 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£1.62
Add:
C803352
PVC Reducing Tee Branch Reduced 50x50x25

PVC Reducing Tee Branch Reduced 50x50x25

Reducing Tee Branch Reduced 50x50x25 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified...
£2.92
Add:
C803353
PVC Reducing Tee Branch Reduced 50x50x32

PVC Reducing Tee Branch Reduced 50x50x32

Reducing Tee Branch Reduced 50x50x32 10 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£2.58
Add:
VDL803363
PVC Reducing Tee Branch Reduced 63x63x32

PVC Reducing Tee Branch Reduced 63x63x32

Reducing Tee Branch Reduced 63x63x32 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£5.15
Add:
C803365
PVC Reducing Tee Branch Reduced 63x63x50

PVC Reducing Tee Branch Reduced 63x63x50

Reducing Tee Branch Reduced 63x63x50 10 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£5.81
Add:
VDL803373
PVC Reducing Tee Glue Fit 75mm x 75mm x 32mm

PVC Reducing Tee Glue Fit 75mm x 75mm x 32mm

PVC Reducing Tee 16 Bar Rated 75mm x 75mm x 32mm (Outside Pipe Diameter ) VDL PVC injection moulded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and...
£8.10
Add:
VDL803374
PVC Reducing Tee Glue Fit 75mm x 75mm x 40mm

PVC Reducing Tee Glue Fit 75mm x 75mm x 40mm

PVC Reducing Tee 16 Bar Rated 75mm x 75mm x 40mm (Outside Pipe Diameter ) VDL PVC injection moulded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and...
£8.12
Add:
VDL803375
PVC Reducing Tee Glue Fit 75mm x 75mm x 50mm

PVC Reducing Tee Glue Fit 75mm x 75mm x 50mm

PVC Reducing Tee 16 Bar Rated 75mm x 75mm x 50mm (Outside Pipe Diameter ) VDL PVC injection moulded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and...
£8.10
Add:
VDL803376
PVC Reducing Tee Glue Fit 75mm x 75mm x 63mm

PVC Reducing Tee Glue Fit 75mm x 75mm x 63mm

PVC Reducing Tee 16 Bar Rated 75mm x 75mm x 63mm (Outside Pipe Diameter ) VDL PVC injection moulded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and...
£8.10
Add:
VDL803395
PVC Reducing Tee Branch Reduced 90x90x50

PVC Reducing Tee Branch Reduced 90x90x50

Reducing Tee Branch Reduced 90x90x50 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£14.29
Add:
Z2599
PVC Reducing Tee Branch Reduced 90x90x63

PVC Reducing Tee Branch Reduced 90x90x63

Reducing Tee Branch Reduced 90x90x63 16 bar rated VDL PVC injection molded fittings offer a comprehensive range of high quality high pressure PVC fittings.  The fittings are suitable for cold water installation KIWA and ATA certified so are...
£22.30
