PVC Threaded Bush

PVC Threaded Bush

These fittings are glued inside a standard welded fitting and then convert the outlet to a female thread.  This is idea for use with spray lines or attaching taps etc directly to the main line

Available items



vdl-threaded-pvc-reducing-bush

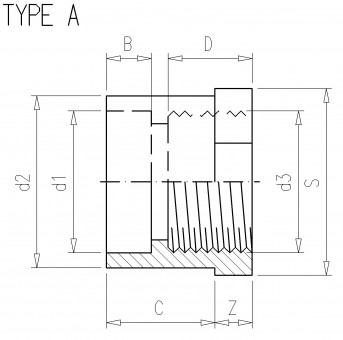

ART.code d1 d2 d3 Z B C S D Type PN Verp
3.10.016 - 16 1/4" (F) 6 - 14 19 14 A 16 250
3.10.020 - 20 1/4" (F) 6 - 16 22 14 A 16 250
3.10.021 - 20 3/8" (F) 6 - 16 22 14 A 16 250
3.10.025 - 25 3/8" (F) 8 - 19 27 14 A 16 250
3.10.026 - 25 1/2" (F) 8 - 19 27 17 A 16 250
3.10.032 - 32 1/2" (F) 8 - 22 36 17 A 16 250
3.10.033 - 32 3/4" (F) 8 - 22 36 19 A 16 250
3.10.039 - 40 1/2" (F) 11 - 26 46 17 A 16 200
3.10.040 - 40 3/4" (F) 11 - 26 46 19 A 16 100
3.10.041 - 40 1" (F) 11 - 26 46 21 A 16 100
3.10.048 - 50 1/2" (F) 12 - 31 55 17 A 16 100
3.10.049 - 50 3/4" (F) 12 - 31 55 19 A 16 100
3.10.050 - 50 1" (F) 12 - 31 55 21 A 16 100
3.10.051 - 50 1 1/4"(F) 12 - 31 55 23 A 16 100
3.10.060 - 63 1/2" (F) 13 - 38 65 17 A 16 100
3.10.061 - 63 3/4" (F) 13 - 38 65 19 A 16 100
3.10.062 - 63 1" (F) 13 - 38 65 21 A 16 100
3.10.063 - 63 1 1/4"(F) 13 - 38 65 23 A 16 100
3.10.064 - 63 1 1/2"(F) 13 - 38 65 23 A 16 100
3.10.074 - 75 1 1/4"(F) 13 - 44 80 23 A 16 50
3.10.075 - 75 1 1/2"(F) 13 - 44 80 23 A 16 50
3.10.076 - 75 2" (F) 13 - 44 80 29 A 16 50
3.10.090 75 90 2" (F) 20 44 51 95 25 A 16 50
3.10.091 - 90 2 1/2"(F) 20 - 51 95 31 A 16 50
3.10.092 75 90 3" (F) 25 44 51 - 35 C 10 50
3.10.110 90 110 2" (F) 20 - 61 115 25 A 16 25
3.10.111 90 110 2 1/2"(F) 22 - 61 115 29 A 16 25
3.10.112 - 110 3" (F) 22 - 61 115 34 A 16 25
3.10.113 - 110 4" (F) 30 - 61 - 40 C 10 25
3.10.125 - 125 3" (F) 25 - 61 138 32 A 10 25
3.10.126 - 125 4" (F) 25 - 61 138 34 A 10 25
3.10.160 - 160 5" (F) - - 86 - 38 B 16 8
3.10.200 - 200 6" (F) - - 108 - 46 B 16 10



PVC-U

PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as:

  • Chemical installations
  • Portable water applications
  • Food and beverage industry
  • Sanitary and swimming pool technology
  • Irrigation


The main advantages of PVC-U are:

  • Excellent chemical resistance
  • Corrosion resistance
  • Easy installation
  • Durability
  • Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.

Pressure CHart VDL Socket
Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.


Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.


Dimensions and standards PVC-U

The fittings correspond to the following standards:

  • DIN 8063
  • ISO 727
  • KIWA nr. BRL-K 504



Model Image Item Name Price
C814725
Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On Wet R Dry UPVC Cement 250 grams 240 ml  Medium bodied, extremely fast setting, low VOC PVC cement for all classes and schedules with interference fit through 6″ (160 mm) diameter, Schedule 80 through 4″ (110 mm) diameter....
£25.07
details
 Sold Out
CVDL801710
PVC Threaded Reducing Bush 20mm X 1/4"

PVC Threaded Reducing Bush 20mm X 1/4"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 20mm x 1/4"   PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as: Chemical installations Portable water...
£1.66
Add:
C801721
PVC Threaded Reducing Bush 25mm X 1/2"

PVC Threaded Reducing Bush 25mm X 1/2"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 25mm x 1/2" VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£1.55
Add:
C801731
PVC Threaded Reducing Bush 32mm X 1/2"

PVC Threaded Reducing Bush 32mm X 1/2"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 32mm x 1/2" VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£1.84
Add:
C801732
PVC Threaded Reducing Bush 32mm X 3/4" BSPF

PVC Threaded Reducing Bush 32mm X 3/4" BSPF

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 32mm x 3/4" Female BSPF VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including...
£1.84
Add:
C801743
PVC Threaded Reducing Bush 40mm X 1"

PVC Threaded Reducing Bush 40mm X 1"

PVC Threaded Reducing Bush 40mm X 1"   VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve...
£1.41
Add:
C801753
PVC Threaded Reducing Bush 50mm X 1"

PVC Threaded Reducing Bush 50mm X 1"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 50mm x 1" VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£3.10
Add:
C801754
PVC Threaded Reducing Bush 50mm X 11/4"

PVC Threaded Reducing Bush 50mm X 11/4"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 50mm x 11/4" VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£3.10
Add:
C801765
PVC Threaded Reducing Bush 63mm X 11/2"

PVC Threaded Reducing Bush 63mm X 11/2"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 63mm x 11/2" VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£5.00
Add:
VDL801775
PVC Threaded Reducing Bush 75mm X 11/2"

PVC Threaded Reducing Bush 75mm X 11/2"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 75mm x 11/2" VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines,...
£7.91
Add:
VDL801776
PVC Threaded Reducing Bush 75mm X 2"

PVC Threaded Reducing Bush 75mm X 2"

Threaded PVC Threaded Reducing Bush Glue - Thread 16 Bar rated 75mm x 2"BSPF VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£7.91
Add:
