PVC Reducing Elbows

VDL PVC Reducing Elbows

VDL are a leading manufacturer of PVC fittings.  The elbows are made from U- PVC and are 16 bar rated.  The are a precision made product made in a state of the art manufacturing plant in the Netherlands.

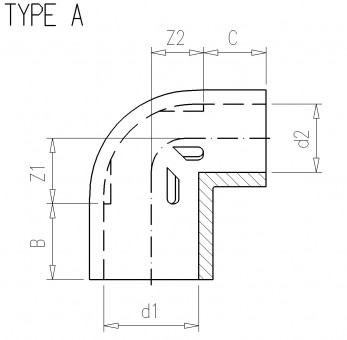

RT.code d1 d2 Z1 Z2 Z3 B C Type PN Verp
2.26.011 40 32 22 22 - 26 22 A 10 200
2.26.021 50 32 28 33 - 31 22 A 10 150
2.26.031 50 40 28 29 - 31 26 A 10 135
2.26.032 50 40 30 33 38 31 26 B 10 100
2.26.042 63 50 45.5 44 50.5 37.5 31 B 10 50




PVC-U

PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as:

  • Chemical installations
  • Portable water applications
  • Food and beverage industry
  • Sanitary and swimming pool technology
  • Irrigation


The main advantages of PVC-U are:

  • Excellent chemical resistance
  • Corrosion resistance
  • Easy installation
  • Durability
  • Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.


Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.


Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.


Dimensions and standards PVC-U

The fittings correspond to the following standards:

  • DIN 8063
  • ISO 727
  • KIWA nr. BRL-K 504



Model Image Item Name Price
C804443
PVC Reducing Elbow 90 Degrees 40mm Glue x 32mm Glue

PVC Reducing Elbow 90 Degrees 40mm Glue x 32mm Glue

PVC Reducing Elbow 90 Degrees 1 bar 40mm Glue 32mm Glue VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and...
£1.73
Add:
C804453
PVC Reducing Elbow 90 Degrees 50mm Glue x 32mm Glue

PVC Reducing Elbow 90 Degrees 50mm Glue x 32mm Glue

PVC Reducing Elbow 90 Degrees 1 bar 50mm Glue 32mm Glue VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and...
£2.55
Add:
C804454
PVC Reducing Elbow 90 Degrees 50mm Glue x 40mm Glue

PVC Reducing Elbow 90 Degrees 50mm Glue x 40mm Glue

PVC Reducing Elbow 90 Degrees 1 bar 50mm Glue 40mm Glue VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and...
£2.87
Add:
C814725
Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On Wet R Dry UPVC Cement 250 grams 240 ml  Medium bodied, extremely fast setting, low VOC PVC cement for all classes and schedules with interference fit through 6″ (160 mm) diameter, Schedule 80 through 4″ (110 mm) diameter....
£25.07
