PVC Socket Adaptor

PVC Glue - Threaded Socket Adaptor

PVC adaptor socket.  One end is a glue fitting and the other has a female BSP thread.



VDL-PVC-Adaptor-Socket

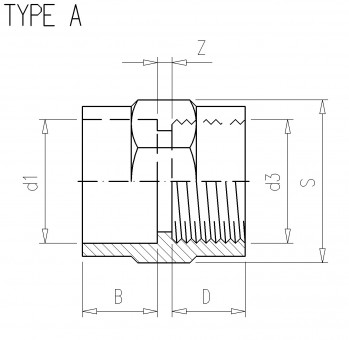

ART.code d1 d3 Z B D S Type PN Verp
3.25.010 12 1/4" (F) 2 12 12 24 A 16 100
3.25.013 16 1/4" (F) 3 14 12 27 A 16 100
3.25.015 16 3/8" (F) 3 14 12 27 A 10 100
3.25.016 16 3/8" (F) 3 14 12 27 B 16 50
3.25.017 20 1/4" (F) 5 16 12 32 A 16 50
3.25.018 20 3/8" (F) 5 16 12 32 A 16 100
3.25.020 20 1/2" (F) 2 16 15 32 A 10 100
3.25.021 20 1/2" (F) 2 16 15 32 B 16 50
3.25.026 25 1/2" (F) 5 19 15 36 A 16 100
3.25.028 25 3/8" (F) 8 19 12 36 A 16 50
3.25.030 25 3/4" (F) 4 19 16 36 A 10 100
3.25.031 25 3/4" (F) 4 19 16 36 B 16 50
3.25.036 32 1/2" (F) 10 22 15 46 A 16 100
3.25.041 32 3/4"(F) 9 22 16 46 A 16 100
3.25.045 32 1" (F) 3 22 22 46 A 10 100
3.25.046 32 1" (F) 3 22 22 46 B 16 50
3.25.048 40 3/4" (F) 6 26 16 55 A 10 150
3.25.049 40 3/4" (F) 6 26 16 55 B 16 50
3.25.051 40 1" (F) 4 26 22 55 A 16 100
3.25.055 40 1 1/4" (F) 3 26 23 55 A 10 100
3.25.056 40 1 1/4" (F) 3 26 23 55 B 16 50
3.25.058 50 1" (F) 2 31 22 66 A 10 100
3.25.059 50 1" (F) 2 31 22 66 B 16 75
3.25.061 50 1 1/4" (F) 4 31 23 66 A 16 100
3.25.065 50 1 1/2" (F) 2 31 25 66 A 10 100
3.25.066 50 1 1/2" (F) 2 31 25 66 B 16 50
3.25.067 63 1 1/4" (F) 3 38 23 80 A 10 50
3.25.067.1 63 1 1/4" (F) 3 38 23 80 B 16 50
3.25.069 63 1 1/2" (F) 5 38 25 80 A 16 50
3.25.070 63 2" (F) 3 38 28 80 A 10 50
3.25.071 63 2" (F) 3 38 28 80 B 16 25
3.25.076 75 1 1/2" (F) 5 44 23 96 A 10 40
3.25.077 63 2" (F) 3 38 27 96 B 16 25
3.25.078 75 2" (F) 4 44 27 96 A 10 45
3.25.079 75 2"(F) 4 44 27 96 B 16 35
3.25.081 75 2 1/2"(F) 4 44 31 96 B 10 25
3.25.091 90 3" (F) 4 51 36 114 B 10 24
3.25.101 110 4" (F) 6 56 45 137 B 10 15





PVC-U

PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as:

  • Chemical installations
  • Portable water applications
  • Food and beverage industry
  • Sanitary and swimming pool technology
  • Irrigation


The main advantages of PVC-U are:

  • Excellent chemical resistance
  • Corrosion resistance
  • Easy installation
  • Durability
  • Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.

Pressure CHart VDL Socket
Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.


Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.


Dimensions and standards PVC-U

The fittings correspond to the following standards:

  • DIN 8063
  • ISO 727
  • KIWA nr. BRL-K 504










Model Image Item Name Price
VDL802011
Threaded PVC Socket 20mm Glue - 1/2" Thread

Threaded PVC Socket 20mm Glue - 1/2" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 20mm x 1/2" Female Thread VDL is a producer of injection moulded fittingsfor PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£1.04
Add:
VDL802022
Threaded PVC Socket 25mm Glue - 3/4" Thread

Threaded PVC Socket 25mm Glue - 3/4" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 25mm x 3/4" Female Thread VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£1.75
Add:
VDL802033
Threaded PVC Socket 32mm Glue - 1" Thread

Threaded PVC Socket 32mm Glue - 1" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 32mm x 1" Female Thread VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£2.08
Add:
VDL802043
Threaded PVC Socket 40mm Glue - 1" Thread

Threaded PVC Socket 40mm Glue - 1" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 40mm x 1" Female Thread VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£2.51
Add:
VDL802044
Threaded PVC Socket 40 mm Glue - 11/4" Thread

Threaded PVC Socket 40 mm Glue - 11/4" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 40 mm x 11/4" Female Thread VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£2.51
Add:
VDL802055
Threaded PVC Socket 50mm Glue - 11/2" Thread

Threaded PVC Socket 50mm Glue - 11/2" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 50mm x 11/2" Female Thread VDL is a producer of injection moulded fittingsfor PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£2.90
Add:
VDL802066
Threaded PVC Socket 63mm Glue - 2" Thread

Threaded PVC Socket 63mm Glue - 2" Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 63mm x 2" Female Thread VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray...
£4.39
Add:
VDL802077
Threaded PVC Socket 75mm Glue - 2 1/2" BSP Thread

Threaded PVC Socket 75mm Glue - 2 1/2" BSP Thread

Threaded PVC Socket Glue X Female Thread 10 Bar Rated 75mm x 2 1/2"" Female Thread VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including...
£12.67
Add:
