PVC 45 Degree Elbows

VDL PVC Elbow 45 Degrees

VDL are a leading manufacturer of PVC fittings.  The elbows are made from U- PVC and are 16 bar rated.  The are a precision made product made in a state of the art manufacturing plant in the Netherlands.

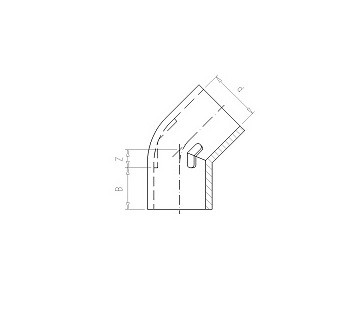

ART.code d Z B PN Verp

2.30.012* 12 3.5 12 16 150 (3x 50)
2.30.016* 16 4.5 14 16 150 (3 x 50)
2.30.020* 20 5 16 16 150 (3 x 50)
2.30.025* 25 6 19 16 150
2.30.032* 32 7 22 16 300
2.30.040* 40 10 26 16 150

2.30.051 50 12 31 16 100
2.30.063* 63 14 38 16 65

2.30.075 75 18 44 16 35
2.30.090 90 19 51 16 24
2.30.110 110 26 61 16 12
2.30.125 125 26.5 69 16 6
2.30.140 140 30 76 16 6
2.30.160 160 35 86 16 2


PVC-U

PVC-U is a Polyvinylchloride without plasticizers that is extremely suitable for very wide applications, such as:

  • Chemical installations
  • Portable water applications
  • Food and beverage industry
  • Sanitary and swimming pool technology
  • Irrigation


The main advantages of PVC-U are:

  • Excellent chemical resistance
  • Corrosion resistance
  • Easy installation
  • Durability
  • Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.


Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.


Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.


Dimensions and standards PVC-U

The fittings correspond to the following standards:

  • DIN 8063
  • ISO 727
  • KIWA nr. BRL-K 504



Model Image Item Name Price
C814725
Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On 725 Wet R Dry PVc Pipe Cement 250g

Weld On Wet R Dry UPVC Cement 250 grams 240 ml  Medium bodied, extremely fast setting, low VOC PVC cement for all classes and schedules with interference fit through 6″ (160 mm) diameter, Schedule 80 through 4″ (110 mm) diameter....
£25.07
details
 Sold Out
C805111
PVC Elbow 45 Degrees 20mm Glue Glue

PVC Elbow 45 Degrees 20mm Glue Glue

PVC Elbow 45 Degrees 20mm Glue Glue VDL is a producer of injection molded fittings for PVC .  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve manifold.  Available in many sizes these...
£1.49
Add:
C805122
PVC Elbow 45 Degrees 25mm Glue Glue

PVC Elbow 45 Degrees 25mm Glue Glue

PVC Elbow 45 Degrees 25mm Glue Glue 16 bar rated VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve...
£1.52
Add:
C805133
PVC Elbow 45 Degrees 32mm Glue Glue

PVC Elbow 45 Degrees 32mm Glue Glue

PVC Elbow 45 Degrees 32mm Glue Glue 16 bar rated VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve...
£1.62
Add:
C805144
PVC Elbow 45 Degrees 40 mm Glue Glue

PVC Elbow 45 Degrees 40 mm Glue Glue

PVC Elbow 45 Degrees 40 mm Glue Glue 16 bar rated VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve...
£2.47
Add:
C805155
PVC Elbow 45 Degrees 50mm Glue Glue

PVC Elbow 45 Degrees 50mm Glue Glue

PVC Elbow 45 Degrees 50mm Glue Glue 16 bar rated VDL is a producer of injection molded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve...
£2.59
Add:
C805166
PVC Elbow 45 Degrees 63mm Glue Glue

PVC Elbow 45 Degrees 63mm Glue Glue

PVC Elbow 45 Degrees 63mm 16 bar rated VDL is a producer of injection moulded fittingsfor PVC and PE pressure pipe systems.  PVC fittings are suitable to use in many applications including spray lines, drip lines, pump and valve manifold. ...
£4.53
Add:
VDL805177
VDL PVC Elbow 45 Degrees 75 mm Glue Glue

VDL PVC Elbow 45 Degrees 75 mm Glue Glue

VDL 45º  Elbow 16 Bar Rated 75 mm PVC pipe fittings are suitable for use with high pressure flowing liquids VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in...
£7.23
details
 Sold Out
VDL805199
VDL PVC Elbow 45 Degrees 90 mm Glue Glue

VDL PVC Elbow 45 Degrees 90 mm Glue Glue

VDL 45º  Elbow 16 Bar Rated 90 mm PVC pipe fittings are suitable for use with high pressure flowing liquids VDL is a producer of injection moulded fittings for PVC and PE pressure pipe systems.  PVC fittings are suitable to use in...
£11.12
Add:
